hot dip galvanized erw carbon steel pipes/tubes

Place of Origin : Cangzhou, China (Mainland)

Packaging Details : clients'requirements

Contact Now

Product Description

Product Name:	Hot dipped galvanized steel pipe
Size:	OD	17-273mm (3/8"-10")
	Wall Thickness	0.5-10.0mm
		SCH30,SCH40,STD,XS,SCH80,SCH160,XXS etc.
	Zinc Coating	Z40-500g/m2
Ends	1) Plain
	2) Beveled
	3) Thread with Coupling or cap
Surface	Galvanized
Section shape	Round/Square/Rectangular
Package	1) Big OD: in bulk
	2) Small OD: packed by steel strips
	3) Woven cloth with 7 slats,
	4) Plastic bags
	5) As per customer's option,
	6) For 20" container the max length is 6m; For 40" container the max length is 12m.
	7) We can load 25tons to 27tons per container.
Application	1) Low pressure liquid delivery such as water, Fluid Pipe, water/oil/gas pipe,
	conduit pipe, scaffolding pipe
	2) Structure pipe in constructions, Bridge, highway, building materials,
	3) Windows of model steel door, fence,
	4) Heating facilities.

Specs of GI steel pipe

Specification		OD mm	Thickness	Min thickness	Welded pipe		Galvanized pipe
Specification		OD mm	mm	mm	(6m)		(6m)
Nominal pipe	inch				kg/m	Pcs / kg	Kg/m	Pcs/kg
size	inch				kg/m	Pcs / kg	Kg/m	Pcs/kg
DN15	1-2	21.3	2.8	2.45	1.28	7.68	1.357	8014
DN20	3-4	26.9	2.8	2.45	1.66	9.96	1.76	10.56
DN25	1	33.7	3.2	2.8	2.41	14.46	2.554	15.32
DN32	1.25	42.4	3.5	3.06	3.36	20.16	3.56	21.36
DN40	1.5	48.3	3.5	3.06	3.87	23.22	4.1	24.6
DN50	2	60.3	3.8	3.325	5.29	31.74	5.607	33.64
DN65	2.5	76.1	4	3.5	7.11	42.66	7.536	45.21
DN80	3	88.9	4		8.38	50.28	8.88	53.28
DN100	4	114.3	4		10.88	65.28	11.53	69.18
DN125	5	140	4.5		15.04	90.24	15.942	98.65
DN150	6	168.3	4.5		18.18	109.08	19.27	115.62
DN200	8	219.1	6.0		31.53	189.18

hot dip galvanized erw carbon steel pipes/tubes

Business Scope

• Steel pipe: Black pipe, Galvanized steel pipe, Round pipe, Square pipe, Rectangular pipe, Spiral pipe, etc

• Steel sheet/coil: Hot/Cold rolled steel sheet/ coil, Galvanized steel sheets/coil, PPGI, Checkered sheet, corrugated steel sheet, etc;

• Steel beam: Angle beam, H beam, I beam, C lipped channel, U channel, Deformed bar, Round bar, Square bar, Cold drawn steel bar, etc

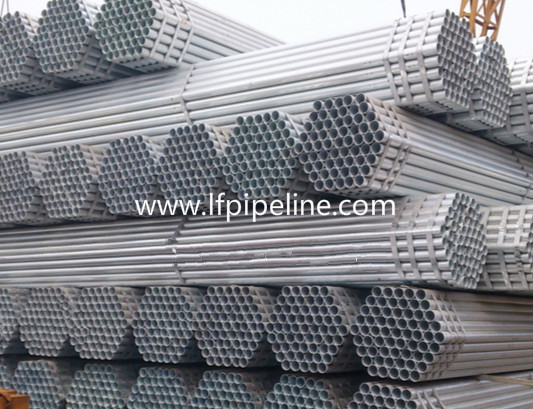

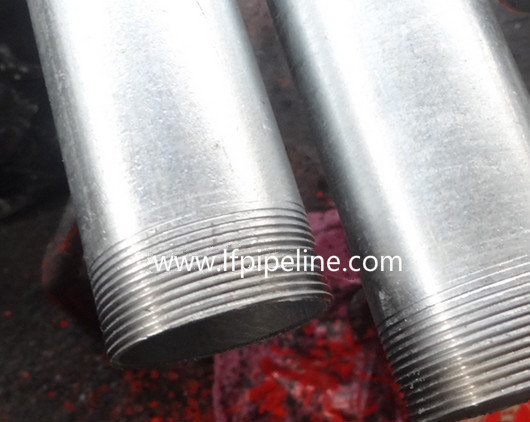

hot dip galvanized erw carbon steel pipes/tubes Images
